Advanced Pump-Piping Interactions and Troubleshooting

II JAY SHRI KRISHNA II

Introduction: Why Your Pump Doesn't Work Alone

Most people see a pump as a standalone machine, tirelessly moving fluids from one place to another. But in reality, a pump is just one part of a complex system. Its true performance, efficiency and lifespan are heavily influenced by the piping network it's connected to. Think of it as a hidden dance, where the pump and pipes constantly interact, sometimes in harmony, sometimes in conflict.

Advanced Pump-Piping Interactions and Troubleshooting

Ignoring this vital interaction can lead to a host of problems: inefficient operation, excessive energy consumption, frequent breakdowns, costly repairs and even dangerous failures. While basic pump selection is crucial, truly mastering pump system reliability requires a deeper understanding of how the pump "sees" and reacts to its piping environment.

This post will dive into the advanced aspects of pump-piping interactions. We'll explore common problems that arise from this relationship, delve into their root causes, and provide practical troubleshooting strategies to ensure your pump systems run smoothly, efficiently and for a long time.

1. The Critical Connection: Understanding Pump System Curves

To understand pump-piping interactions, we first need to grasp the concept of system curves.

1.1. Pump Performance Curve: How Your Pump Performs

Every pump has a unique "performance curve" provided by the manufacturer. This curve typically plots:

Head (pressure) vs. Flow Rate: Showing how much pressure the pump can generate at different flow rates.

Efficiency vs. Flow Rate: Indicating the pump's energy efficiency at various operating points.

Net Positive Suction Head Required (NPSHr) vs. Flow Rate: A critical parameter we'll discuss soon.

This curve reveals what the pump can achieve when everything is perfect.

Pump Performance and System Head Curves

1.2. System Head Curve: What the Piping Demands

The "system head curve" represents the total resistance the piping system offers to the fluid flow. This resistance comes from two main parts:

Static Head: The difference in elevation between the fluid's source & its discharge point or the vertical distance fluid travels. This is fixed for a given setup.

Friction Head: The energy loss due to fluid friction as it moves through pipes, valves, fittings and equipment. Friction loss scales quadratically with flow rate: double the flow, four times the friction.

The system head curve originates at the static head and increases with flow.

1.3. The Operating Point: Where Pump Meets System

The pump always finds its operating point at the curve intersection. This intersection is the "operating point." If this point isn't near the pump's Best Efficiency Point (BEP), you're wasting energy and likely shortening your pump's life.

2. The Suction Side: Where Most Pump Problems Begin

The suction side is a critical and highly sensitive area, where most pump failures originate.

2.1. Net Positive Suction Head (NPSH): Cavitation - The Root Cause

This is perhaps the most critical concept in pump operation.

2.1.1. Understanding NPSH Required (NPSHr)

NPSHr indicates the pump's internal requirement for a certain absolute pressure (head) at its suction to avoid the damaging effects of cavitation. It's determined by the pump manufacturer through testing and varies with flow rate.

2.1.2. Understanding NPSH Available (NPSHa)

NPSHa is the actual absolute pressure (head) existing at the suction port. It depends on:

NPSH Available (NPSHa) Calculation Factors

Atmospheric pressure (or tank pressure if closed).

Liquid level in the suction tank.

Friction losses in the suction piping.

Vapor pressure of the liquid (which increases with temperature).

2.1.3. The Golden Rule: NPSHa > NPSHr

Ensure NPSHa > NPSHr for optimal, cavitation-free pump performance. A common safety margin is to have NPSHa at least 1-2 feet (0.3-0.6 meters) higher than NPSHr.

2.2. Cavitation: The Sound of Damage

Cavitation occurs when the pressure in the fluid drops below its vapor pressure, causing tiny vapor bubbles to form. As these bubbles move into higher pressure regions within the pump (e.g., impeller eye to impeller discharge), they violently collapse.

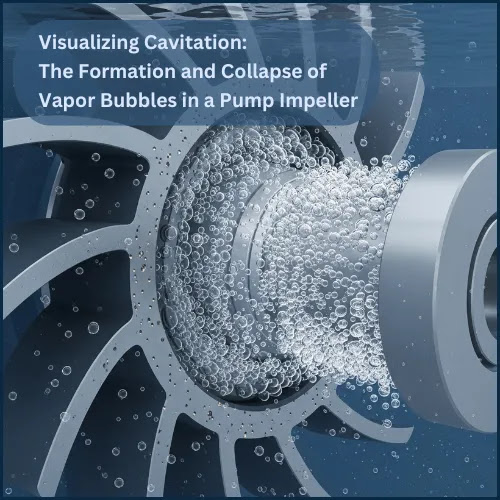

Cavitation in a Pump Impeller

2.2.1. Signs of Cavitation

Noise: A harsh sound, like gravel passing through the pump, popping or crackling.

Vibration: Increased pump and motor vibration.

Performance Drop: Reduced flow rate and discharge pressure.

Damage: Pitting and erosion on the impeller vanes, casing and seals.

2.2.2. Troubleshooting Cavitation

Check NPSHa: Is the liquid level in the suction tank too low? Is the liquid temp. too high (increasing vapor pressure)? Are suction pipe friction losses too high (too long, too small, too many fittings)?

Reduce NPSHr: Running the pump at a lower flow rate might reduce NPSHr, but this might not be the desired operating point.

Increase Suction Pipe Diameter: Reduces friction loss.

Reduce Suction Pipe Length/Fittings: Simplify the suction line.

Lower the Pump: If possible, place the pump closer to or below the liquid level.

Change Pump Type: Some pumps are more tolerant to low NPSHa than others.

3. Discharge Side Dynamics: Controlling Flow and Pressure

While the suction side causes more cavitation, the discharge side's design greatly influences the operating point and overall system efficiency.

3.1. High Discharge Pressure / Low Flow

If the discharge piping is too restrictive (e.g., too small diameter, too many elbows, partially closed valve, fouling), the system head curve will be very steep. This forces the pump to operate at a high head, but a low flow rate, potentially far from its BEP.

High Discharge Pressure Due to Piping Restriction

3.1.1. Troubleshooting High Discharge Pressure / Low Flow

Check for Closed Valves: Ensure all discharge valves are fully open.

Inspect for Fouling/Blockages: Look for buildup or obstructions in the discharge pipe or heat exchangers.

Check Pipe Size: Is the discharge pipe adequately sized for the flow?

Analyze System Changes: Have process conditions changed since the pump was installed?

3.2. Low Discharge Pressure / High Flow

If the discharge piping offers too little resistance, the pump might operate at a high flow rate but a low head. While this might seem good, it can also be far from the BEP, leading to:

Overloading the Motor: High flow often means higher power consumption.

Excessive Velocity: Can lead to erosion or vibration in the piping.

Recirculation: Internal recirculation within the pump can occur, causing damage.

3.2.1. Troubleshooting Low Discharge Pressure / High Flow

Throttle Discharge Valve: If the pump is operating far right of its BEP, throttling the discharge valve can shift the operating point back towards BEP (but causes energy loss across the valve).

Check for Internal Pump Wear: Worn impellers or wear rings can cause the pump's performance curve to drop, leading to lower head at any given flow.

System Demand Change: Has the demand on the system reduced?

4. Vibration and Noise: Signs of System Stress

Vibration and noise are often symptoms of deeper pump-piping interaction issues.

4.1. Common Causes of Vibration and Noise

Cavitation: As discussed, bubble collapse causes noise and vibration.

Pipe Stress on Pump: Misaligned piping or pipes that are too rigidly connected can transfer stress directly to the pump casing and bearings, causing vibration.

Resonance: If the natural frequency of the pump, piping or support structure matches an operating frequency (e.g., pump RPM, vane pass frequency), it can lead to severe resonant vibration.

Flow Instabilities: Turbulent flow, vortex shedding at fittings, or slug flow can induce pipe vibration.

Improper Support: Insufficient or misplaced pipe supports lead to excessive pipe movement.

Flow-Induced Vibration and Resonance in Piping

4.2. Troubleshooting Vibration and Noise

Check Alignment: Confirm accurate pump-motor coupling. Crucially, check if the piping itself is causing strain on the pump's nozzles; the piping should "fit" without forcing.

Add/Modify Pipe Supports: Ensure supports are adequately placed and designed to dampen vibration and support pipe weight correctly.

Install Expansion Joints/Flexible Connectors: These can isolate pump vibration from the piping system, but must be chosen carefully to avoid introducing new problems.

Reroute Piping: Sometimes, small changes in piping layout (e.g., avoiding sharp turns near the pump inlet) can significantly reduce turbulence.

Acoustic/Vibration Analysis: Specialized analysis can pinpoint the source and frequency of vibration to determine the best mitigation strategy.

5. Other Advanced Considerations and Troubleshooting Tips

Beyond the main issues, several other factors influence pump-piping interactions.

5.1. Suction & Discharge Piping Layout

Straight Runs: Aim for adequate straight pipe runs before the suction inlet (typically 5-10 pipe diameters) and after the discharge outlet to ensure uniform flow and reduce turbulence.

Reducer Types: Use eccentric reducers (flat on top for horizontal suction lines) to prevent air pockets at the pump suction.

Valve Placement: Avoid placing valves or elbows too close to the pump suction, as they can cause swirl and uneven flow into the impeller.

5.2. System Fouling and Corrosion

Over time, pipes can experience internal buildup (fouling) or corrosion, reducing their effective diameter and increasing friction head. This shifts the system curve, forcing the pump to operate at a higher head and lower flow.

5.2.1. Troubleshooting Fouling/Corrosion

Regular Inspections: Periodically inspect pipe internals.

Cleaning Regimes: Execute chemical cleaning or pigging schedules.

Material Selection: Choose pipe materials resistant to the fluid's corrosive properties.

5.3. Starting and Stopping Procedures

Rapid starting or stopping of pumps can induce fluid hammer, creating severe pressure surges that stress both the piping and the pump.

5.3.1. Mitigation

Controlled Valve Operation: Open and close valves slowly.

VFDs (Variable Frequency Drives): Allow for soft starts/stops, gradually ramping up/down pump speed.

Surge Vessels: Install surge tanks or dampeners in critical lines.

Conclusion: Orchestrating a Harmonious Pump System

The pump-piping interaction is a complex but crucial element of reliable fluid handling. Understanding concepts like NPSH, system curves, and the causes of dynamic loads isn't just theoretical knowledge; it's the key to diagnosing and preventing common, costly pump problems.

By paying meticulous attention to suction piping design, anticipating dynamic forces, selecting appropriate supports, and implementing thoughtful troubleshooting strategies, you can transform a problematic pump system into a harmonious, energy-efficient, and long-lasting asset. Investing in this advanced understanding of pump-piping interactions is truly an investment in the operational excellence and safety of your facility.
