The Invisible Shield: Advanced Thermal Management in Piping Beyond Basic Insulation

II JAY SHRI KRISHNA II

Why Temperature Matters More Than You Think in Piping

When we talk about piping systems, our minds often jump to pressure, flow, and structural integrity. However, an often-underestimated, yet critically important, factor is thermal management. The temperature of the fluid being transported, and how that temperature is maintained or controlled, can profoundly impact everything from process efficiency and product quality to safety and energy consumption.

Advanced Thermal Management Beyond Insulation

For years, basic insulation has been the go-to solution for thermal management. While undoubtedly essential, insulation alone is often insufficient for modern industrial demands. Many processes require precise temperature control, heat recovery, or even active heating/cooling along the pipeline. Ignoring these advanced aspects can lead to significant heat loss or gain, inefficient operations, increased energy bills, compromised product integrity and even safety hazards.

This post will delve deeper into the world of Thermal Management in Piping. We'll move beyond the basics of insulation to explore the "invisible shield" of advanced techniques and technologies that ensure optimal temperature control, maximize energy efficiency and safeguard your processes.

1. Essential Foundations: Why Insulation Remains Paramount

Before we go beyond, let’s quickly reiterate the fundamental role of insulation. Insulation functions to minimize the exchange of heat (through conduction, convection and radiation) between the pipe and its surroundings.

1.1. Core Functions of Insulation

Energy Conservation: Prevents heat loss from hot pipes (e.g., steam lines) and heat gain into cold pipes (e.g., chilled water lines), saving significant energy.

Process Temperature Maintenance: Ensures fluids maintain their target temperature for optimal process conditions.

Personnel Protection: Reduces surface temperature of hot pipes, preventing burns.

Condensation Control: Prevents condensation on cold pipes, which can lead to corrosion and dripping.

Noise Reduction: Some insulation materials also offer acoustic dampening.

1.2. Types of Insulation Materials

Common materials include fiberglass, mineral wool, foam glass, cellular glass and polyurethane foams, chosen based on temperature range, environmental conditions, and cost. Insulation, while foundational, represents a largely passive solution. What happens when passive isn't enough?

2. Active Temperature Control: The Need for Heat Tracing

Many applications require more than just preventing heat loss; they need to actively add heat to maintain temperature, prevent freezing or reduce viscosity. Heat tracing plays a role here.

2.1. Electric Heat Tracing: The Versatile Solution

The process of electric heat tracing includes the installation of electric heating cables parallel to a pipe's length. These cables generate heat, which is then transferred to the pipe and its contents.

Advanced Pipe Insulation

2.1.1. Types of Electric Heat Tracing Cables

Self-Regulating Cables: The most common type. Their power output automatically adjusts with ambient temperature; they produce more heat in colder conditions and less in warmer ones. This prevents overheating and saves energy.

Constant Wattage Cables: Provide a consistent heat output per unit length, regardless of temperature. Requires more sophisticated control systems to prevent overheating.

Mineral Insulated (MI) Cables: Robust cables for high-temperature applications or where high power output is needed, often custom-fabricated.

2.1.2. Applications of Electric Heat Tracing

Freeze Protection: Prevents water lines, fire suppression systems and process lines from freezing in cold climates.

Process Temperature Maintenance: Keeps viscous fluids (e.g., heavy oils, waxes, chemicals) at a specific temperature to ensure flowability.

Hot Water Temperature Maintenance: Ensures hot water is instantly available at taps in large buildings.

Anti-Condensation: Prevents condensation on instrument lines.

2.2. Steam Tracing: The Traditional Powerhouse

Steam tracing involves running small-diameter copper or stainless steel tubing (tracers) alongside process pipes, often underneath the insulation. Steam flows through these tracers, transferring heat to the process pipe.

2.2.1. Advantages and Disadvantages

Advantages: High heat transfer capability, especially for high-temperature applications. Uses existing steam infrastructure in many industrial plants.

Disadvantages: Less precise temperature control than electric tracing, likely to overheating if not designed properly, requires steam traps and condensate return systems, higher installation and maintenance costs for smaller lines, potential for steam trap failures.

2.2.2. When to Choose Steam Tracing

Typically preferred for very high-temperature maintenance, large-diameter pipes or in facilities with abundant, low-cost steam where precise temperature control isn't paramount.

3. Beyond Tracing: Advanced Thermal Management Techniques

While insulation and heat tracing are fundamental, true thermal optimization in complex systems often involves more sophisticated approaches.

3.1. Jacketed Piping: The Ultimate in Uniform Heating/Cooling

Jacketed piping consists of one pipe (the inner or carrier pipe) concentrically placed inside a larger pipe (the jacket pipe). A heating or cooling medium (e.g., steam, hot oil, cooling water, chilled glycol) flows through the annular space (the jacket) between the two pipes.

3.1.1. Benefits of Jacketed Piping

Superior Temperature Uniformity: Provides very even heat transfer around the entire circumference of the inner pipe.

Precise Control: Allows for very accurate temperature control of the process fluid.

High Heat Transfer Rates: Excellent for highly viscous fluids or processes requiring rapid temperature changes.

No Contamination Risk: The heating/cooling medium is completely isolated from the process fluid.

3.1.2. Applications

Common in chemical, pharmaceutical, food and polymer industries for transporting materials like molten sulfur, asphalt, chocolate or specialized resins that solidify rapidly if temperature drops.

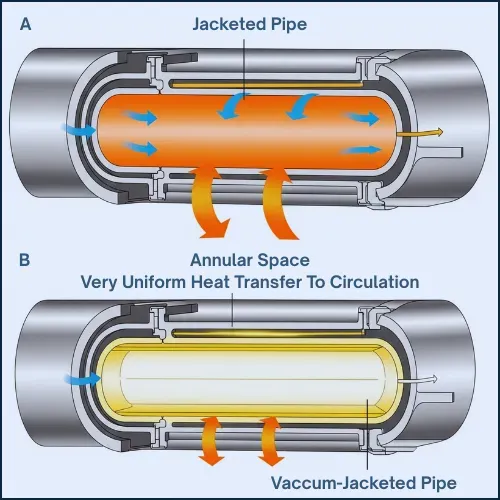

The Jacketed Pipe System

3.2. Vacuum Jacketed Piping: For Extreme Cold and Cryogenics

A specialized form of jacketed piping where the annulus between the inner and outer pipe is evacuated to a high vacuum. This removes conduction and convection as pathways for heat transfer through the air within the space. Multi-layer insulation (MLI) is often added in the vacuum space for additional radiation shielding.

3.2.1. Key Use Cases

Essential for transporting cryogenic liquids (e.g., liquid nitrogen, liquid oxygen, LNG, liquid hydrogen) where even a small amount of heat gain can lead to significant boil-off and product loss.

3.3. Integral Tracing (Extruded or Bonded): Fusion of Tracing Technologies

Some pipe designs integrate heat tracing directly into the pipe wall or outer surface during manufacturing.

3.3.1. Examples

Extruded Tracing: Heating elements are extruded directly into the pipe wall, offering excellent heat transfer and robustness.

Bonded Tracing: Heating panels or coils are permanently bonded to the exterior of the pipe.

3.3.2. Advantages

Highly efficient heat transfer, compact design, and often easier installation than field-applied tracing for certain applications.

4. Heat Recovery and Energy Efficiency: Pathways to Enhanced Value

Effective thermal management isn't just about maintaining temperature; it's also about optimizing energy use.

4.1. Waste Heat Recovery Systems

Integrating heat exchangers into piping networks to capture waste heat from hot effluent streams and transfer it to colder incoming streams.

4.1.1. Benefits

Significantly reduces overall energy consumption, lowers operating costs and decreases carbon footprint.

4.2. Optimized Insulation Thickness and Material Selection

Re-evaluating insulation thickness and material type based on current energy costs and desired surface temperatures can yield significant long-term savings. Sometimes, over-insulating can be wasteful too, if it hinders necessary heat dissipation.

4.3. Advanced Control Systems

Implementing intelligent control systems for heat tracing, jacketed piping and heat recovery. These systems use sensors (temperature, flow), PLCs, and VFDs to precisely manage heat input/output, preventing over-heating or over-cooling and reacting to changing process conditions.

4.3.1. Benefits

Minimizes energy waste, enhances process stability and allows for remote monitoring and adjustment.

5. Advanced Thermal Management: Challenges and Troubleshooting

Even with advanced systems, problems can arise. Understanding common issues and their solutions is key to maintaining system integrity.

Advanced Thermal Management: Challenges and Troubleshooting

5.1. Common Issues

Ineffective Heat Transfer: Could be due to fouled heat transfer surfaces (in jacketed or traced pipes), incorrect heating medium flow or degraded insulation.

Overheating/Underheating: Often a result of poor control system calibration, sensor failure or incorrect sizing of tracing/jacketing.

Insulation Degradation: Moisture ingress, physical damage or aging can compromise insulation performance, leading to unexpected heat loss/gain.

Tracer/Jacket Leaks: Can lead to process fluid contamination, energy loss and safety hazards.

Electrical Faults (Electric Tracing): Cable damage, short circuits or ground faults.

Steam Trap Failures (Steam Tracing): Failed open traps waste steam; failed closed traps cause condensate buildup and reduce heat transfer.

5.2. Troubleshooting Strategies

Thermal Imaging (Infrared Cameras): Invaluable for quickly identifying cold spots (heat loss) on insulated or traced lines, indicating insulation damage, tracing failure or blockages.

Process Temperature Monitoring: Consistent monitoring of fluid temperatures along the line can pinpoint issues.

Pressure and Flow Checks: For jacketed or traced systems, ensure the heating/cooling medium has adequate pressure and flow.

Insulation Integrity Checks: To verify insulation integrity, visually check regularly for damage, moisture, or sagging.

Electrical Testing (for Electric Tracing): Megger testing for insulation resistance, continuity checks.

Steam Trap Audits: Regular inspection and testing of steam traps to ensure they are functioning correctly.

Root Cause Analysis: For persistent problems, conduct a thorough analysis to identify the underlying cause, which could be design flaws, installation errors or operational issues.

Conclusion: The Unseen Power of Thermal Mastery

Thermal management in piping systems is far more intricate than simply wrapping a pipe in insulation. It's a dynamic interplay of design, material science, active heating/cooling, and intelligent control. From maintaining critical process temperatures to preventing costly energy waste and ensuring safety, advanced thermal management techniques are indispensable for modern industries.

By moving beyond basic insulation to embrace solutions like electric and steam tracing, jacketed and vacuum-jacketed piping and smart heat recovery systems, companies can unlock significant operational efficiencies, enhance product quality, and achieve sustainable energy goals. Mastering this unseen power within your piping network is not just an advantage—it's a necessity for optimal performance and future readiness.
